The team from Wroclaw University of Technology (Ł.Sterczewski, G.Gomółka) tested all major commercial extended InGaAs detectors providers. Just to found out their 1-2.6um range are still too narrow for their research.. to see, measure and use frequency combs.
combs](https://www.nist.gov/topics/physics/optical-frequency-combs).
We were thrilled to provide them custom InAs MWIR detector chips with small mesa, which they hoped to enable them to resolve GHz waveforms, and see long span frequency combs in all their beuaty.
Indeed, they were not disappointed! !!GHz confirmed!!
InAs semiconductor properties are used everywhere, where speed matters. It could be Hall sensors, it could be HEMT/HBT transistors, it could be UltraRAM, or MWIR detector.. in each of this applications inherent InAs carrier mobility play key role to reach out frequencies not possible for SWIR materials like Silicon, GaAs, InP or InGaAs.
Mid-wave infrared (MWIR) frequency combs are expected to dramatically improve the precision and sensitivity of molecular spectroscopy and gas sensing. For high resolution applications, high speed MWIR photodetector is the key component.
However, the commercially available high speed MWIR photodetector has usually only sub-GHz bandwidth due to their large size and capacitance.
More info will be published soon.

If InGaAs and extended InGaAs detectors are not fast for your research, we are happy to support you with custom InAs/InAsSbP detectors, that open up frequency combs physics!

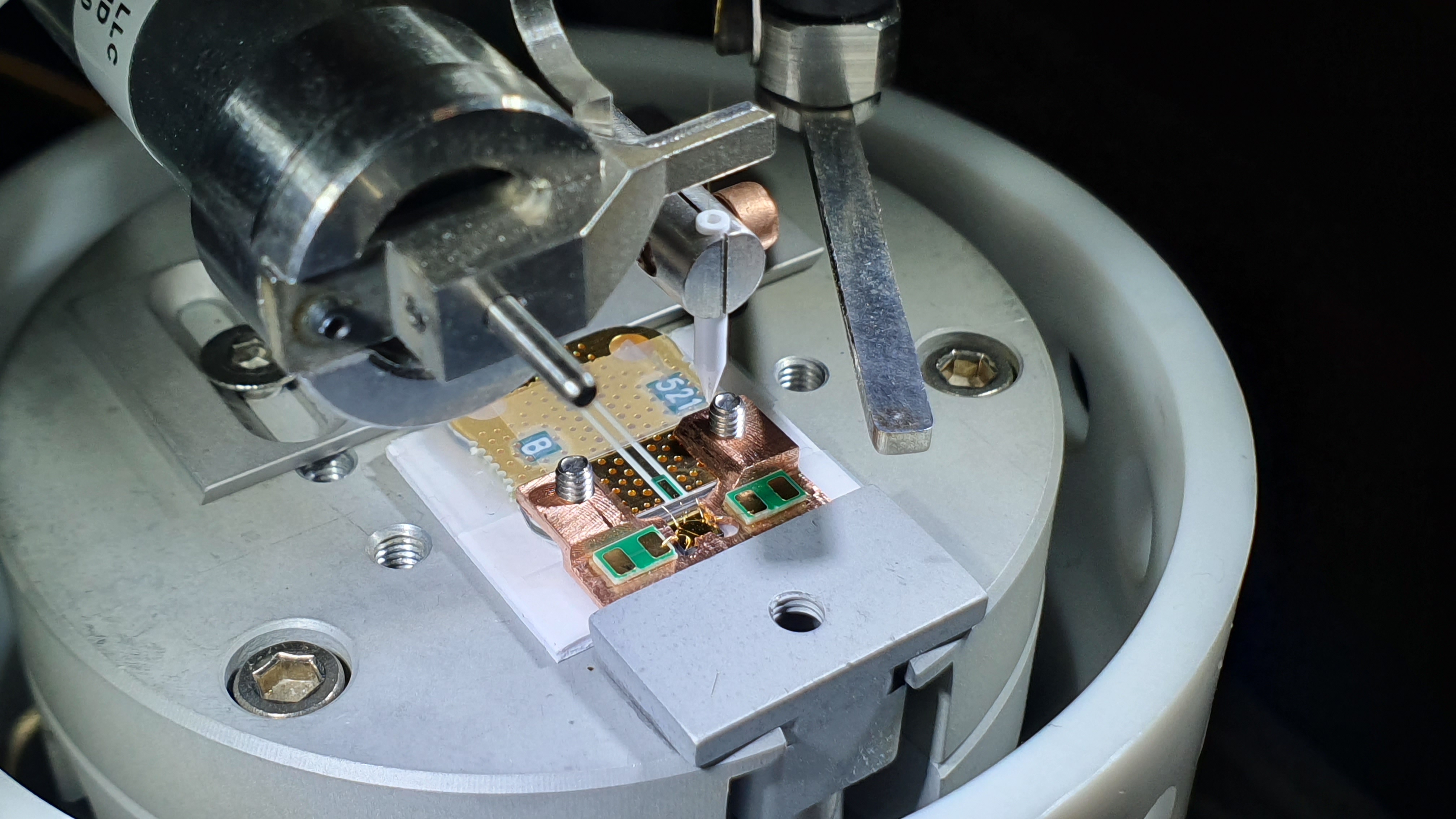

It could be seen, that reaching GHz require special setup fixture..

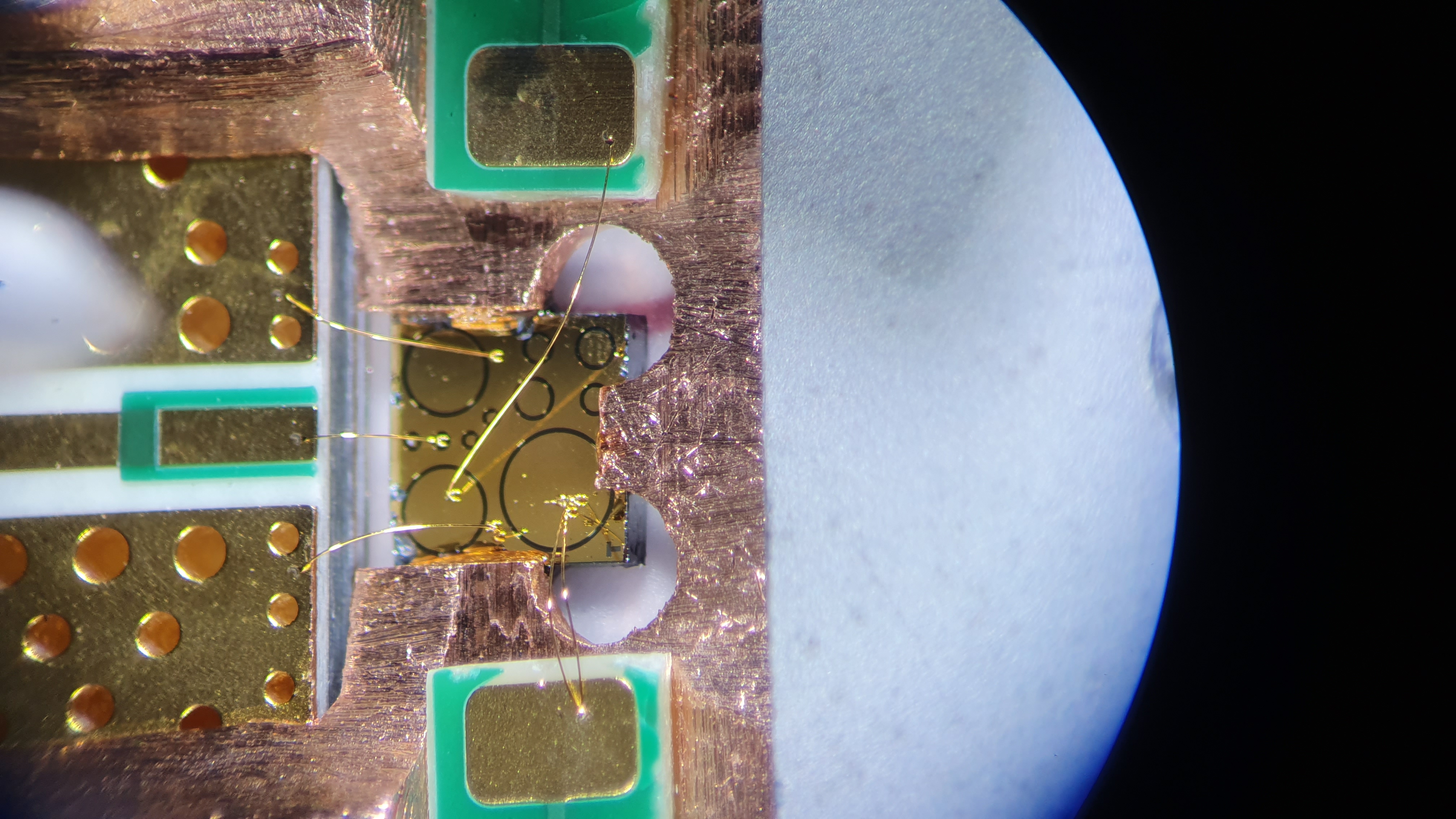

the smallest circle(mesa) on the chip is our hero of the day

Big Thank You! goes to J.Pawluczyk, O.Slezak, and P.Martyniuk who made those chips from Photin wafers!
